Oil Well Pictures in the Permian Basin

Drill Pipe Racks and Catwalk

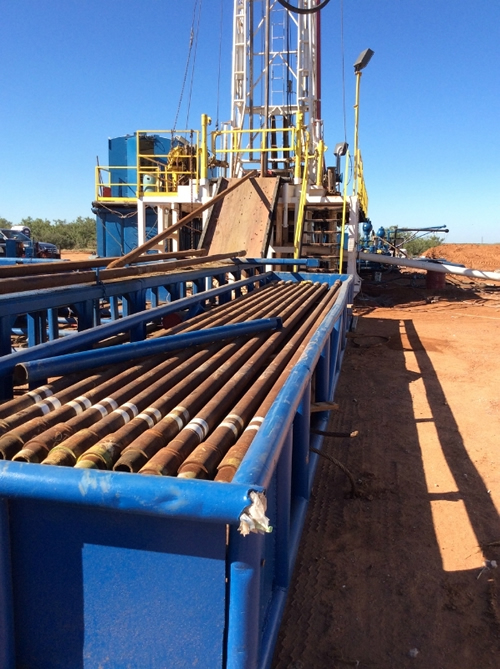

Here are the pipe racks and catwalk of the Noodle Canyon rig in the Permian Basin. The lengths of pipe are stored here before being placed on the catwalk on their way to the rig.

The Rig Site Pipe Rack – A Lot More Important Than You Think

A pipe rack on an oil and gas rig site is a critical structure used for storing and organizing tubular goods such as drill pipes, casings, and tubing. It is an essential component of the rig site, designed to keep the pipes readily accessible, secure, and in good condition.

Key Functions and Features of a Pipe Rack:

1. Storage and Organization:
   • The primary function of the pipe rack is to store drill pipes and other tubular goods in an organized manner. This helps with efficient inventory management and the quick retrieval of pipes when needed.
   • Pipes are usually stacked horizontally in tiers on the rack, allowing for easy access and handling.
2. Safety:
   • Properly designed pipe racks enhance safety on the rig site by preventing pipes from rolling or falling, which could pose a hazard to personnel.
   • The racks are constructed with strong materials and are often equipped with safety barriers or chains to secure the pipes in place.
3. Protection of Equipment:
   • Pipe racks help protect the pipes from damage by keeping them off the ground and away from harsh environmental conditions such as moisture and dirt, which can cause corrosion or other forms of degradation.
4. Efficiency in Operations:
   • Organized pipe racks facilitate quicker and more efficient pipe handling during drilling operations. This reduces downtime and improves overall operational efficiency.
   • The racks are strategically placed near the rig floor, catwalk, or within the pipe yard to minimize the distance pipes need to be transported during tripping operations.
5. Customization and Adaptability:
   • Pipe racks can be customized to accommodate different sizes and types of pipes. They are often adjustable to fit varying lengths and diameters of tubular goods.
   • Modular designs allow for easy expansion or reconfiguration of the rack system to meet changing operational needs.

Components of a Pipe Rack:

1. Supports and Tiers:
   • The racks typically consist of a series of horizontal supports or beams arranged in tiers. Pipes are laid across these supports.
   • The number of tiers and the spacing between them depend on the size and quantity of pipes being stored.
2. Base Structure:
   • The base of the pipe rack is designed to provide stability and support the weight of the stored pipes. It is usually anchored to the ground or mounted on a sturdy foundation.
3. Safety Features:
   • Safety chains, rails, or stops are incorporated to prevent pipes from rolling off the rack.
   • In some cases, additional protective coverings or coatings are used to shield the pipes from environmental damage.

Importance of Proper Pipe Rack Management:

• Efficient Drilling Operations: Properly managed pipe racks ensure that the necessary pipes are readily available and easily accessible, which is crucial for maintaining continuous drilling operations.
• Reduced Downtime: Efficient pipe handling reduces the time required for tripping operations, thereby minimizing downtime and increasing productivity.
• Enhanced Safety: By keeping the pipes organized and secure, pipe racks significantly reduce the risk of accidents and injuries on the rig site.

Overall, the pipe rack is an integral part of the rig site infrastructure, playing a vital role in the storage, handling, and management of tubular goods essential for drilling operations.
